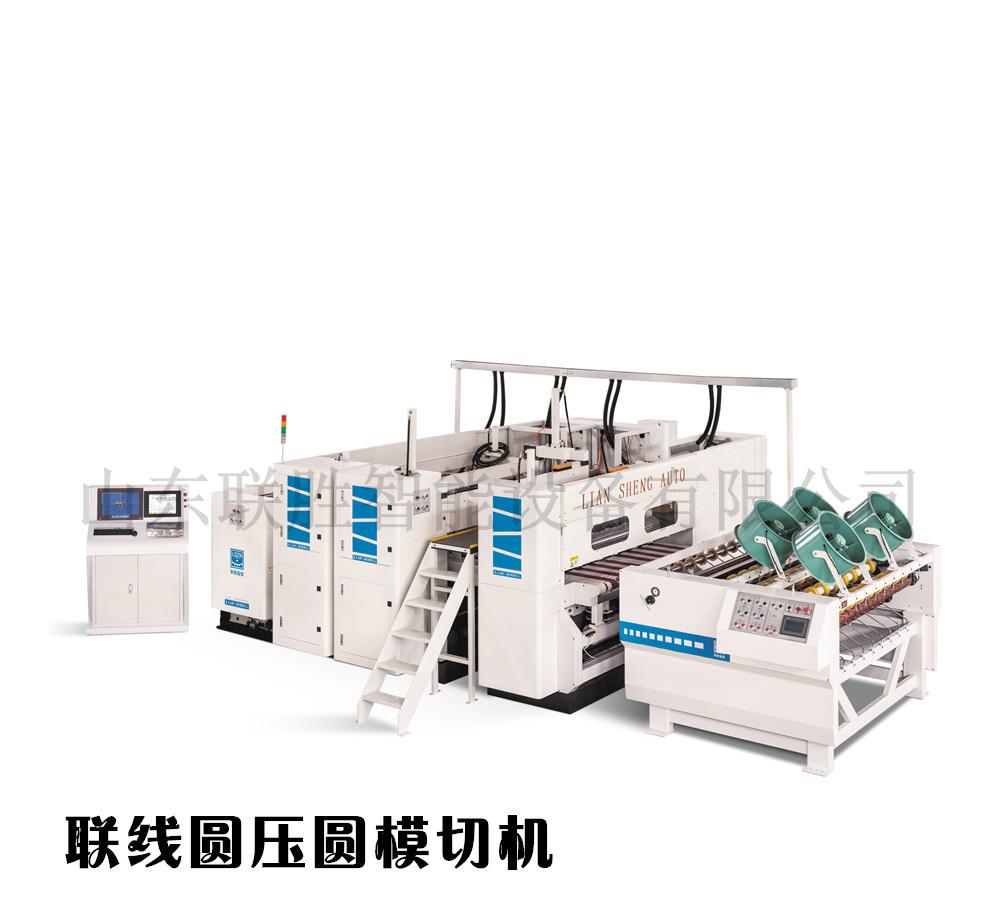

| 聯線圓壓圓模切機 | ||||
| Inline Rotary Die Cutting Machine | ||||
| 產品介紹 | Introduction | |||
| 瓦楞紙板生產線聯線圓壓圓模切機是根據市場需求自主研發的集紙箱、紙板可任意自動切換全智能型模切機，隨著勞動成本的提高和產品價格的下降預印產品越來越多，特別是啤酒、飲料、乳品紙箱價格競爭日趨激烈，根據客戶 要求為應對市場研制了聯線圓壓圓模切機，聯線模切機可根據產品要求自動校正、自動糾偏、自動模切、自動清廢、 自動抽檢排廢于一體的紙箱成型設備，本產品全智能型可 實現無人值守并有三大市場優勢：1、節省勞動力，2、節省能源，3、節省原材料。 | Corrugated cardboard production line Inline Rotary Die Cutting Machine is a newly developed fully automatic intelligent rotary die cutting machine according to the demanding of the market, capable of switching to different types of products. With the increase of labor cost and the decrease of product price nowdays, to gain more benefit, more and more products are pre-printed now. Especially the industries for beer, beverage, and dairy carton, the competition are increasingly fierce. The machine is developed to be able to automatically calibrate, automatic rectifying, die cutting, stripping and discarding the cardboard. This machine is fully intelligent, can be unmanned and three main advantages: 1, Saves labor; 2, Saves power; 3, Saves raw materials. | |||
| 市場優勢 | Advantages | |||
|
相比于單機可，使用聯線圓壓圓模切機
1,可節省工人 3-5 人，每人每月工資按照 3000 元計算每年可節省 10 萬 -18 萬元。 可節省電能，55%。 使用聯線圓壓圓模切機比使用單機可節省原材料 3%-5%, 每年可 給您節約成本 180 萬元 -240萬元。 綜合計算每年各給您 多創造利潤 220-260萬元。 |
Compares with the independent Rotary die cutting machine, by Inline Rotary Die cutting Machine: 1,Reduces 3-5 workers from the line, as 3000 RMB per worker per month, that is 100,000-180,000RMB benefit per year. 2, Saves 3%-5% raw materials, around 1,800,000 to 2,400,000 less investment.Sum up, that is 2,200,00 to 2,600,000 more benefit every year. | |||
| 主要技術參數 | Parameters | |||
| 規格型號 | Model | LXMQ1600 | LXMQ1800 | LXMQ2200 |
| 最高生產速度 | Max. Speed | 260m/min. | 260m/min. | 260m/min. |
| 連續生產速度 | ECO. Speed | 180-220m/min. | 180-220m/min. | 180-220m/min. |
| 模切周長 | Cutting Circumference（mm) | 850-1400 | 850-1400 | 850-1400 |
| 有效模切寬度 | Cutting Width(mm) | 600-1600 | 600-1800 | 600-2200 |
| 總功率 | Power(KW) | 40 | 45 | 50 |
